Phoenix P30

Phoenix P30 - Bilde 2

Phoenix P30

Pumpehus

Membraner

Kuler

Sete

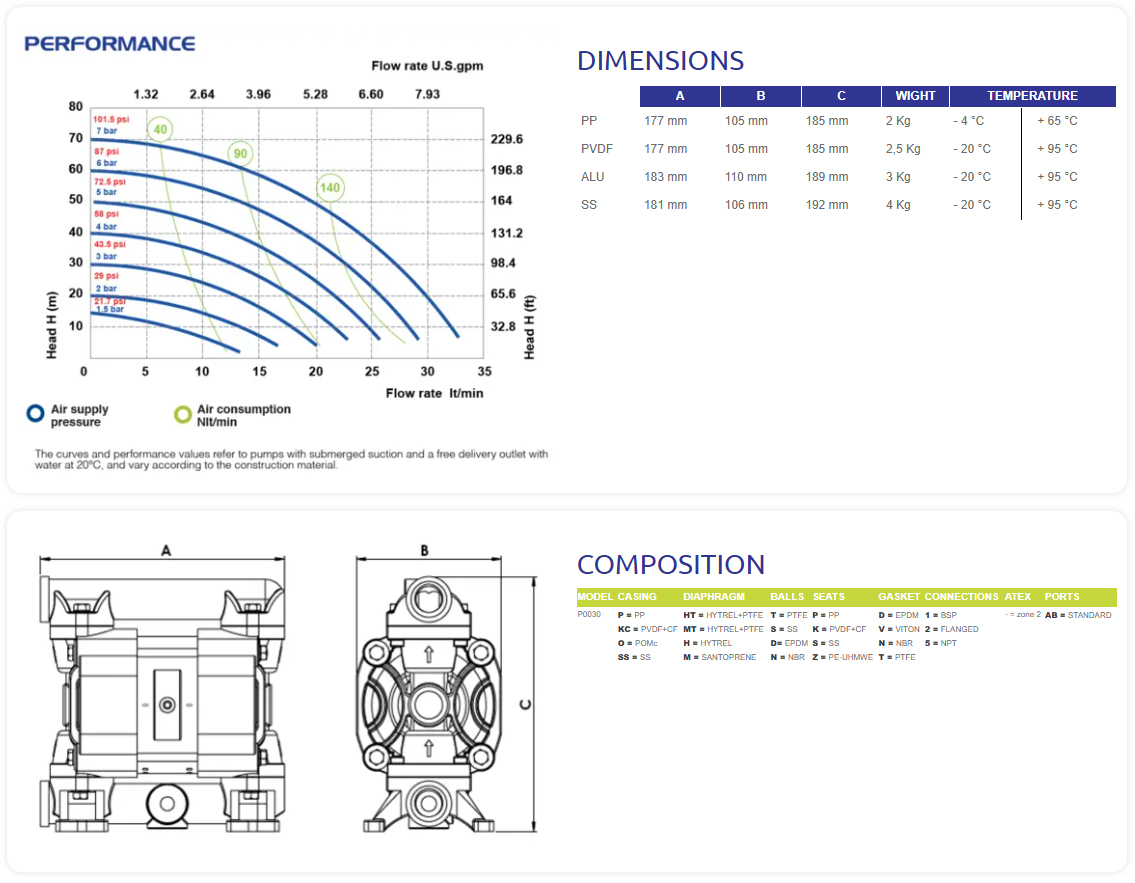

Beskrivelse

Fluid connections: 1/2” BSP
Air connection: 6 mm
Max flow-rate: 35 lt/min
Max air pressure: 7 bar
Max delivery head: 70 m
Max Suction Lift Dry: 5 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 3 mm
Noise level: 65 dB
Max Viscosity: 15.000 cps
Displacement per stroke: 65 CC~

Data Sheet – P30 – PP

Data Sheet – P30 – PVDF+CF

Data Sheet – P30 – ALU

Data Sheet – P30 – SS

Tilleggsinformasjon

Tilleggsinformasjon

Pumpehus	ALU, PP, PVDF+CF, SS
Membraner	HYTREL, HYTREL + PTFE, SANTOPRENE, SANTOPRENE + PTFE
Kuler	EPDM, INOX, NBR, PTFE
Sete	INOX, PP, PP/PE, PVDF
